X. L. Zhu, W. Hu, Z. J. Deng, J. W. Zhang, F. Q. Hu, R. Zhou, K. Q. Li, and F.-Y. Wang, “Interaction-aware cut-in trajectory prediction and risk assessment in mixed traffic,” IEEE/CAA J. Autom. Sinica, vol. 9, no. 10, pp. 1752–1762, Oct. 2022. doi: 10.1109/JAS.2022.105866
Citation: X. L. Zhu, W. Hu, Z. J. Deng, J. W. Zhang, F. Q. Hu, R. Zhou, K. Q. Li, and F.-Y. Wang, “Interaction-aware cut-in trajectory prediction and risk assessment in mixed traffic,” IEEE/CAA J. Autom. Sinica, vol. 9, no. 10, pp. 1752–1762, Oct. 2022. doi: 10.1109/JAS.2022.105866

Interaction-Aware Cut-In Trajectory Prediction and Risk Assessment in Mixed Traffic

doi: 10.1109/JAS.2022.105866
Funds:  This work was supported in part by the Key-Area Research and Development Program of Guangdong Province (2020B0909050003) and the Program of Jiangxi (20204ABC03A13)
More Information

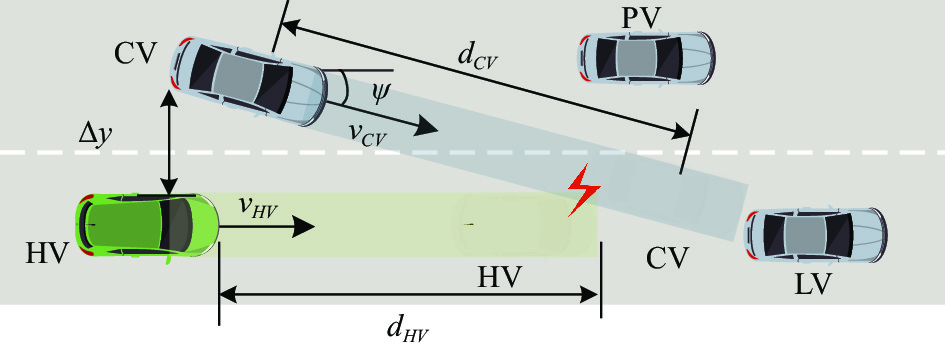

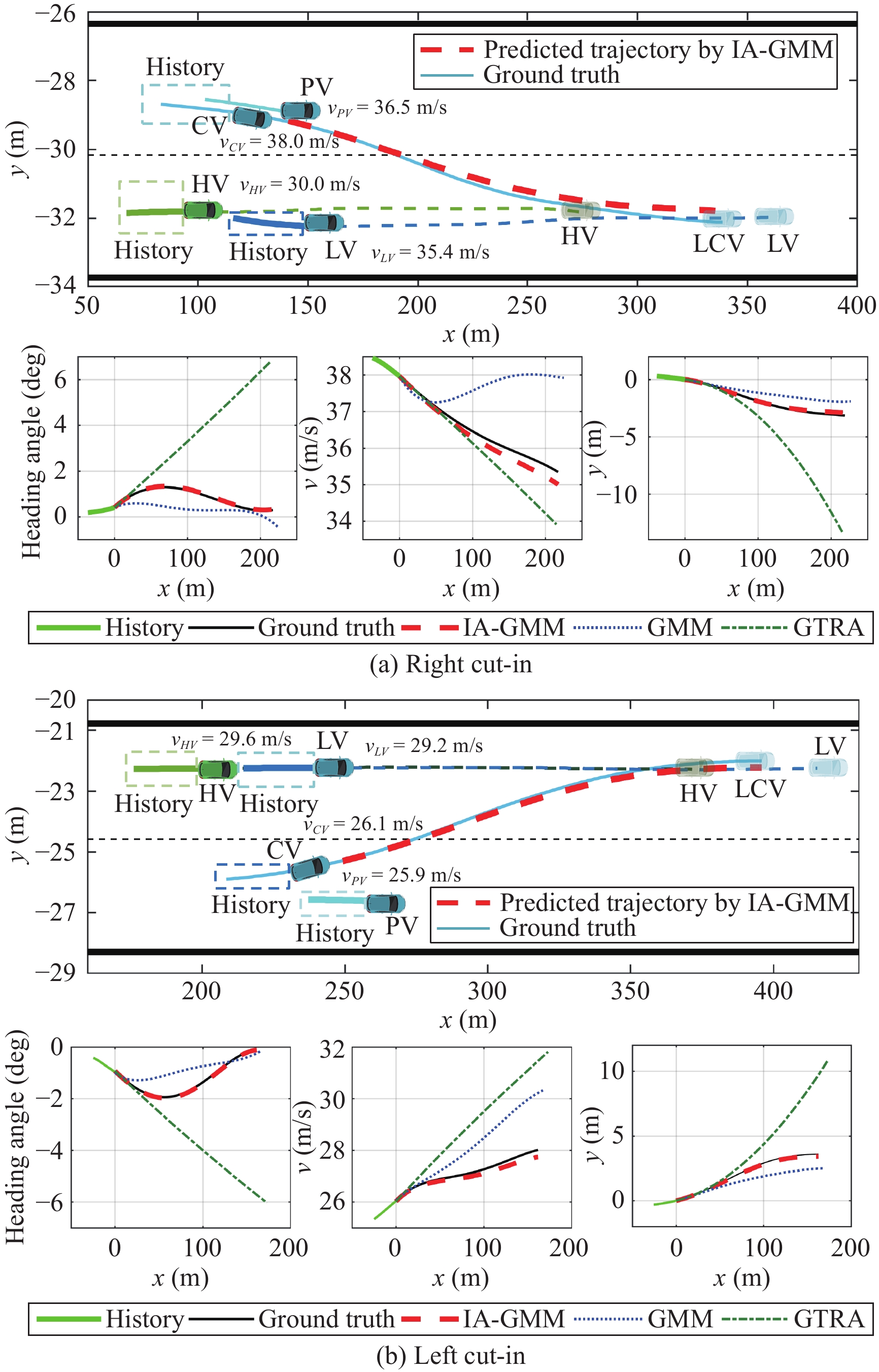

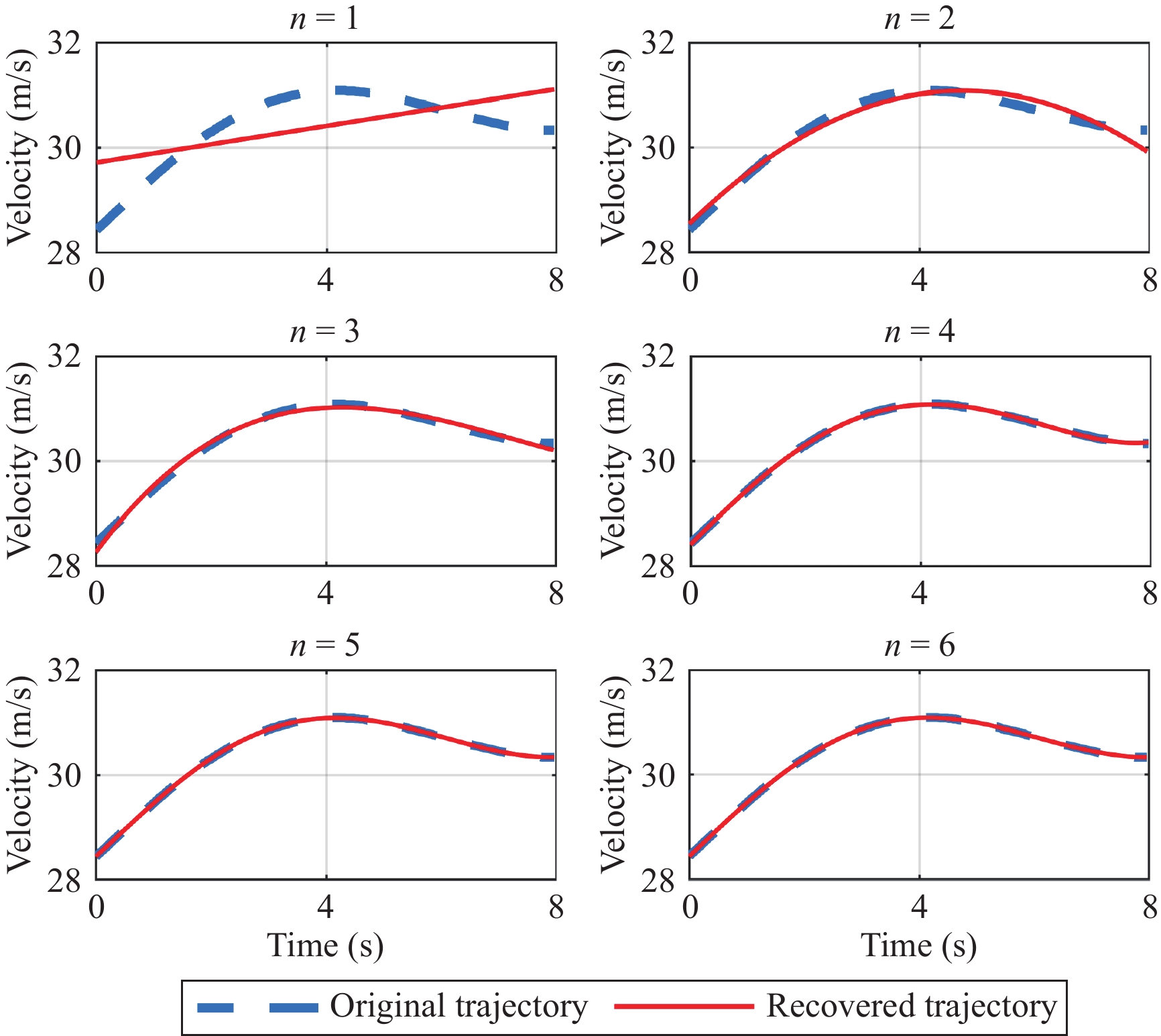

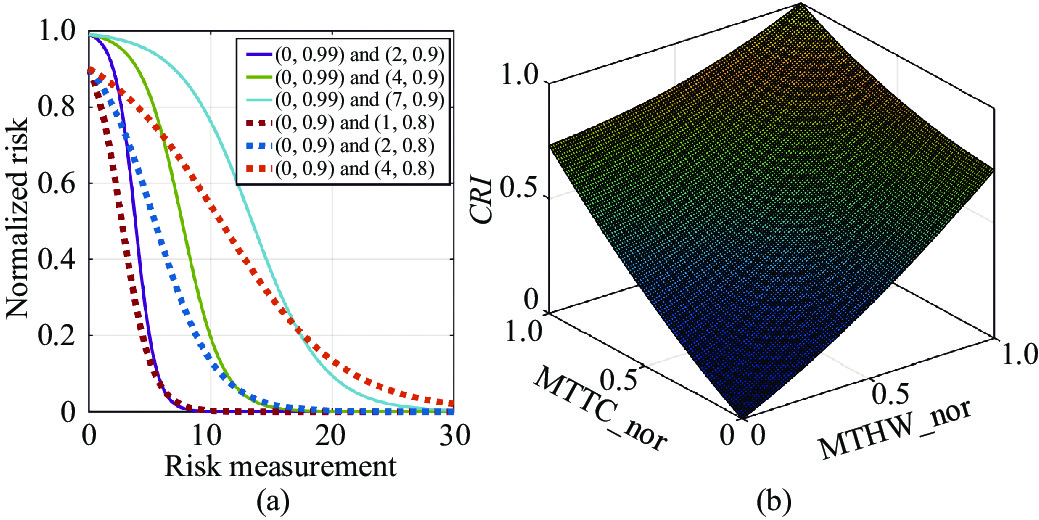

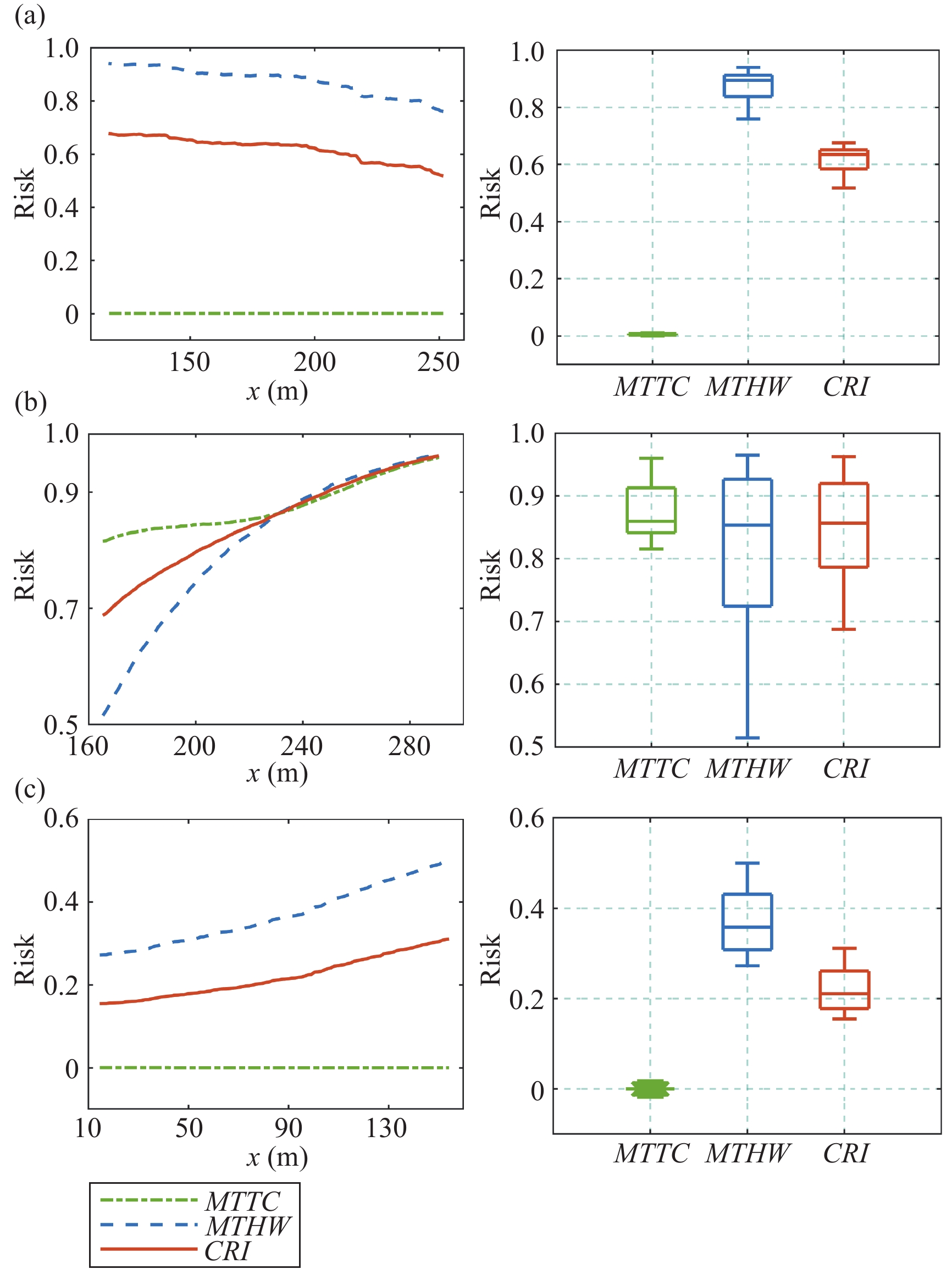

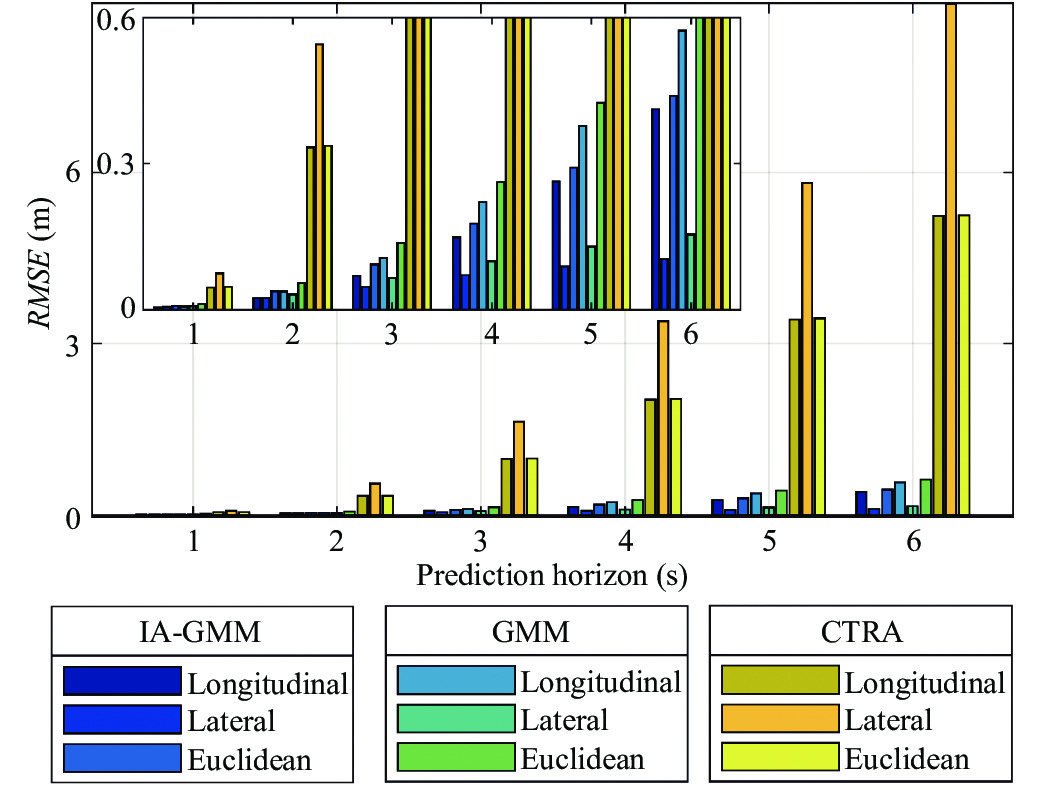

  • Accurately predicting the trajectories of surrounding vehicles and assessing the collision risks are essential to avoid side and rear-end collisions caused by cut-in. To improve the safety of autonomous vehicles in the mixed traffic, this study proposes a cut-in prediction and risk assessment method with considering the interactions of multiple traffic participants. The integration of the support vector machine and Gaussian mixture model (SVM-GMM) is developed to simultaneously predict cut-in behavior and trajectory. The dimension of the input features is reduced through Chebyshev fitting to improve the training efficiency as well as the online inference performance. Based on the predicted trajectory of the cut-in vehicle and the responsive actions of the autonomous vehicles, two risk measurements are introduced to formulate the comprehensive interaction risk through the combination of Sigmoid function and Softmax function. Finally, the comparative analysis is performed to validate the proposed method using the naturalistic driving data. The results show that the proposed method can predict the trajectory with higher precision and effectively evaluate the risk level of a cut-in maneuver compared to the methods without considering interaction.


  • loading
  • [1]
    J. W. Zhang, G. F. Li, Z. J. Deng, H. L. Yu, J. P. Huissoon, and D. P. Cao, “Interaction-aware cut-in behavior prediction and risk assessment for autonomous driving,” IFAC-PapersOnLine, vol. 53, no. 5, pp. 656–663, Jan. 2020. doi: 10.1016/j.ifacol.2021.04.156
    J. W. Zhang, “An interaction-aware approach for online cut-in behavior prediction and risk assessment for autonomous driving,” M.S. thesis, Mech. Mechatron. Eng., Univ. Waterloo, Waterloo, USA, 2021.
    X. S. Wang, M. M. Yang, and D. Hurwitz, “Analysis of cut-in behavior based on naturalistic driving data,” Accid. Anal. Prev., vol. 124, pp. 127–137, Mar. 2019. doi: 10.1016/j.aap.2019.01.006
    C. Y. Zu, C. Yang, J. Wang, W. B. Gao, D. P. Cao, and F. Y. Wang, “Simulation and field testing of multiple vehicles collision avoidance algorithms,” IEEE/CAA J. Autom. Sinica, vol. 7, no. 4, pp. 1045–1063, Jul. 2020. doi: 10.1109/JAS.2020.1003246
    F. Remmen, I. Cara, E. de Gelder, and D. Willemsen, “Cut-in scenario prediction for automated vehicles,” in Proc. IEEE Int. Conf. Vehicular Electronics and Safety, Madrid, Spain, 2018, pp. 1–7.
    N. Lyu, J. Q. Wen, Z. C. Duan, and C. Z. Wu, “Vehicle trajectory prediction and cut-in collision warning model in a connected vehicle environment,” IEEE Trans. Intell. Transp. Syst., vol. 23, no. 2, pp. 966–981, Feb. 2020.
    Y. M. Chen, C. Hu, and J. M. Wang, “Human-centered trajectory tracking control for autonomous vehicles with driver cut-in behavior prediction,” IEEE Trans. Veh. Technol., vol. 68, no. 9, pp. 8461–8471, Sep. 2019. doi: 10.1109/TVT.2019.2927242
    C. Q. Zhao, S. P. Li, F. G. Liu, W. S. Wang, and J. W. Gong, “Influence analysis of autonomous cars’ cut-in behavior on human drivers in a driving simulator,” in Proc. IEEE Intelligent Vehicles Symp., Changshu, China, 2018, pp. 85–90.
    M. Aramrattana, T. Larsson, C. Englund, J. Jansson, and A. Nåbo, “A novel risk indicator for cut-in situations,” in Proc. IEEE 23rd Int. Conf. Intelligent Transportation Systems, Rhodes, Greece, 2020, pp. 1–6.
    G. T. Xie, H. M. Qin, M. J. Hu, D. H. Ni, and J. Q. Wang, “Modeling discretionary cut-in risks using naturalistic driving data,” Transp. Res. Part F: Traffic Psychol. Behav., vol. 65, pp. 685–698, Aug. 2019. doi: 10.1016/j.trf.2017.11.022
    T. Zhang, W. J. Song, M. Y. Fu, Y. Yang, and M. L. Wang, “Vehicle motion prediction at intersections based on the turning intention and prior trajectories model,” IEEE/CAA J. Autom. Sinica, vol. 8, no. 10, pp. 1657–1666, Oct. 2021. doi: 10.1109/JAS.2021.1003952
    M. Al-Sharman, D. Murdoch, D. P. Cao, C. Lv, Y. Zweiri, D. Rayside, and W. Melek, “A sensorless state estimation for a safety-oriented cyber-physical system in urban driving: Deep learning approach,” IEEE/CAA J. Autom. Sinica, vol. 8, no. 1, pp. 169–178, Jan. 2021. doi: 10.1109/JAS.2020.1003474
    S. Lefèvre, D. Vasquez, and C. Laugier, “A survey on motion prediction and risk assessment for intelligent vehicles,” ROBOMECH J., vol. 1, no. 1, pp. 1–14, Jul. 2014. doi: 10.1186/s40648-014-0001-z
    H. F. Li, J. W. Huang, M. C. Zhou, Q. S. Shi, and Q. Fei, “Self-attention pooling-based long-term temporal network for action recognition,” IEEE Trans. Cogn. Dev. Syst., 2022, DOI: 10.1109/TCDS.2022.3145839.
    L. Y. Zhang, H. Han, M. C. Zhou, Y. Al-Turki, and A. Abusorrah, “An improved discriminative model prediction approach to real-time tracking of objects with camera as sensors,” IEEE Sens. J., vol. 21, no. 15, pp. 17308–17317, Aug. 2021. doi: 10.1109/JSEN.2021.3079214
    Y. F. Ma, Z. Y. Wang, H. Yang, and L. Yang, “Artificial intelligence applications in the development of autonomous vehicles: A survey,” IEEE/CAA J. Autom. Sinica, vol. 7, no. 2, pp. 315–329, Mar. 2020. doi: 10.1109/JAS.2020.1003021
    J. Schulz, K. Hirsenkorn, J. Löchner, M. Werling, and D. Burschka, “Estimation of collective maneuvers through cooperative multi-agent planning,” in Proc. IEEE Intelligent Vehicles Symp., Los Angeles, USA, 2017, pp. 624–631.
    X. X. Xiong, L. Chen, and J. Liang, “A new framework of vehicle collision prediction by combining SVM and HMM,” IEEE Trans. Intell. Transp. Syst., vol. 19, no. 3, pp. 699–710, Mar. 2018. doi: 10.1109/TITS.2017.2699191
    Y. Yoon, C. Kim, J. Lee, and K. Yi, “Interaction-aware probabilistic trajectory prediction of cut-in vehicles using Gaussian process for proactive control of autonomous vehicles,” IEEE Access, vol. 9, pp. 63440–63455, Jan. 2021. doi: 10.1109/ACCESS.2021.3075677
    S. Z. Dai, L. Li, and Z. H. Li, “Modeling vehicle interactions via modified LSTM models for trajectory prediction,” IEEE Access, vol. 7, pp. 38287–38296, Jan. 2019. doi: 10.1109/ACCESS.2019.2907000
    G. T. Xie, H. B. Gao, L. J. Qian, B. Huang, K. Q. Li, and J. Q. Wang, “Vehicle trajectory prediction by integrating physics- and maneuver-based approaches using interactive multiple models,” IEEE Trans. Ind. Electron., vol. 65, no. 7, pp. 5999–6008, Jul. 2018. doi: 10.1109/TIE.2017.2782236
    Y. Li, Y. Q. Zheng, B. Morys, S. Y. Pan, and J. Q. Wang, “Threat assessment techniques in intelligent vehicles: A comparative survey,” IEEE Intell. Transp. Syst. Mag., vol. 13, no. 4, pp. 71–91, 2021. doi: 10.1109/MITS.2019.2907633
    C. Xu, W. Z. Zhao, and C. Y. Wang, “An integrated threat assessment algorithm for decision-making of autonomous driving vehicles,” IEEE Trans. Intell. Transp. Syst., vol. 21, no. 6, pp. 2510–2521, Jun. 2020. doi: 10.1109/TITS.2019.2919865
    M. Althoff and A. Mergel, “Comparison of Markov chain abstraction and Monte Carlo simulation for the safety assessment of autonomous cars,” IEEE Trans. Intell. Transp. Syst., vol. 12, no. 4, pp. 1237–1247, Dec. 2011. doi: 10.1109/TITS.2011.2157342
    C. Katrakazas, M. Quddus, and W. H. Chen, “A new integrated collision risk assessment methodology for autonomous vehicles,” Accid. Anal. Prev., vol. 127, pp. 61–79, Jun. 2019. doi: 10.1016/j.aap.2019.01.029
    J. Q. Wang, J. Wu, and Y. Li, “The driving safety field based on driver-vehicle-road interactions,” IEEE Trans. Intell. Transp. Syst., vol. 16, no. 4, pp. 2203–2214, Aug. 2015. doi: 10.1109/TITS.2015.2401837
    S. Kolekar, J. de Winter, and D. Abbink, “Human-like driving behaviour emerges from a risk-based driver model,” Nat. Commun., vol. 11, no. 1, pp. 1–13, Sep. 2020. doi: 10.1038/s41467-020-18353-4
    J. Wiest, M. Höffken, U. Kreßel, and K. Dietmayer, “Probabilistic trajectory prediction with Gaussian mixture models,” in Proc. IEEE Intelligent Vehicles Symp., Madrid, Spain, 2012, pp. 141–146.
    A. Kesting, M. Treiber, and D. Helbing, “General lane-changing model MOBIL for car-following models,” Transp. Res. Rec.: J. Transp. Res. Board, vol. 1999, no. 1, pp. 86–94, Jan. 2007. doi: 10.3141/1999-10
    R Krajewski, J Bock, L Kloeker, and L. Eckstein, “The highD dataset: A drone dataset of naturalistic vehicle trajectories on German highways for validation of highly automated driving systems,” in Proc. IEEE 21st Int. Conf. Intelligent Transportation Systems, Maui, USA, 2018, pp. 2118–2125.


    通讯作者: 陈斌, bchen63@163.com
    • 1.

      沈阳化工大学材料科学与工程学院 沈阳 110142

    1. 本站搜索
    2. 百度学术搜索
    3. 万方数据库搜索
    4. CNKI搜索

    Figures(10)  / Tables(2)

    Article Metrics

    Article views (892) PDF downloads(153) Cited by()

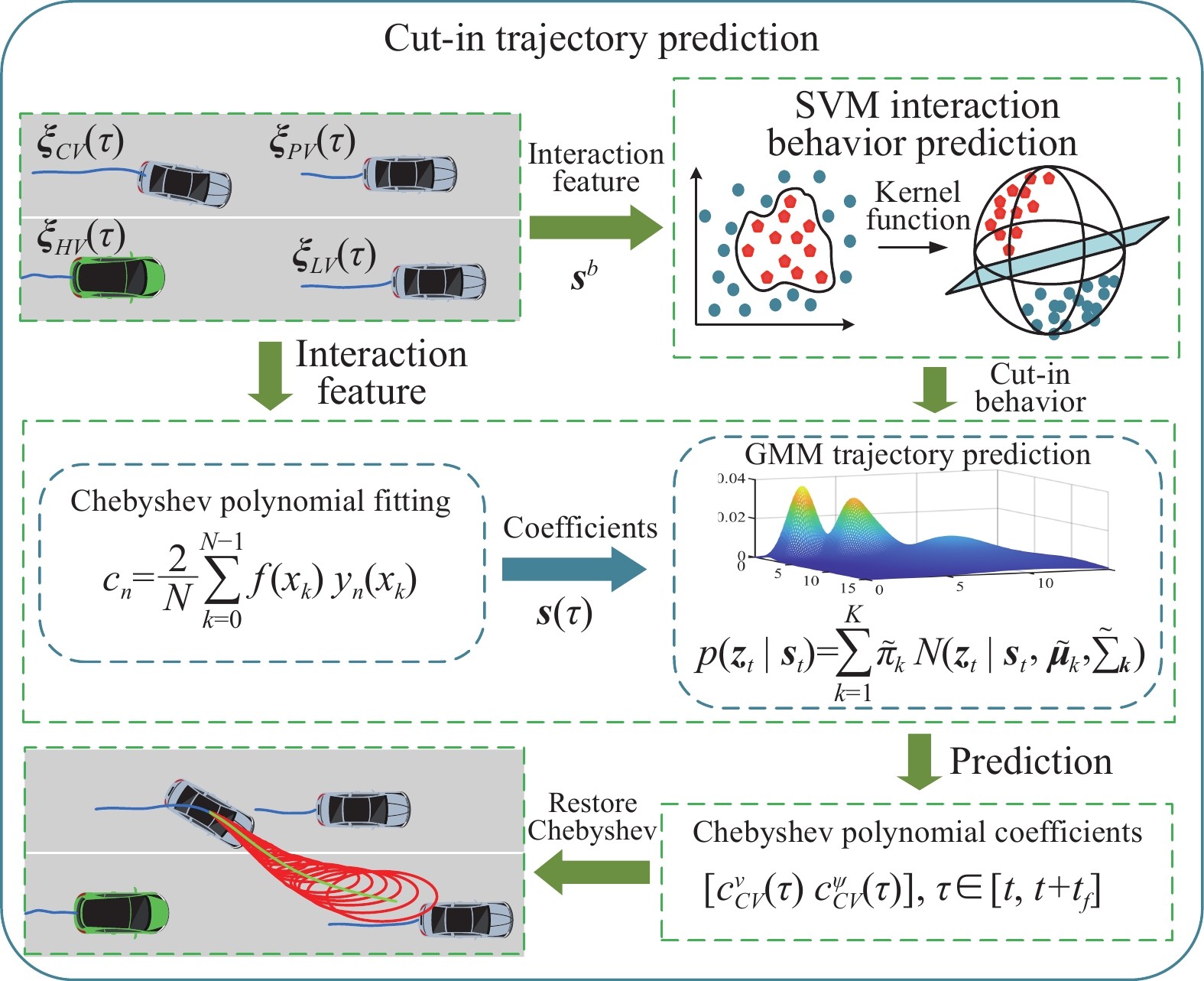

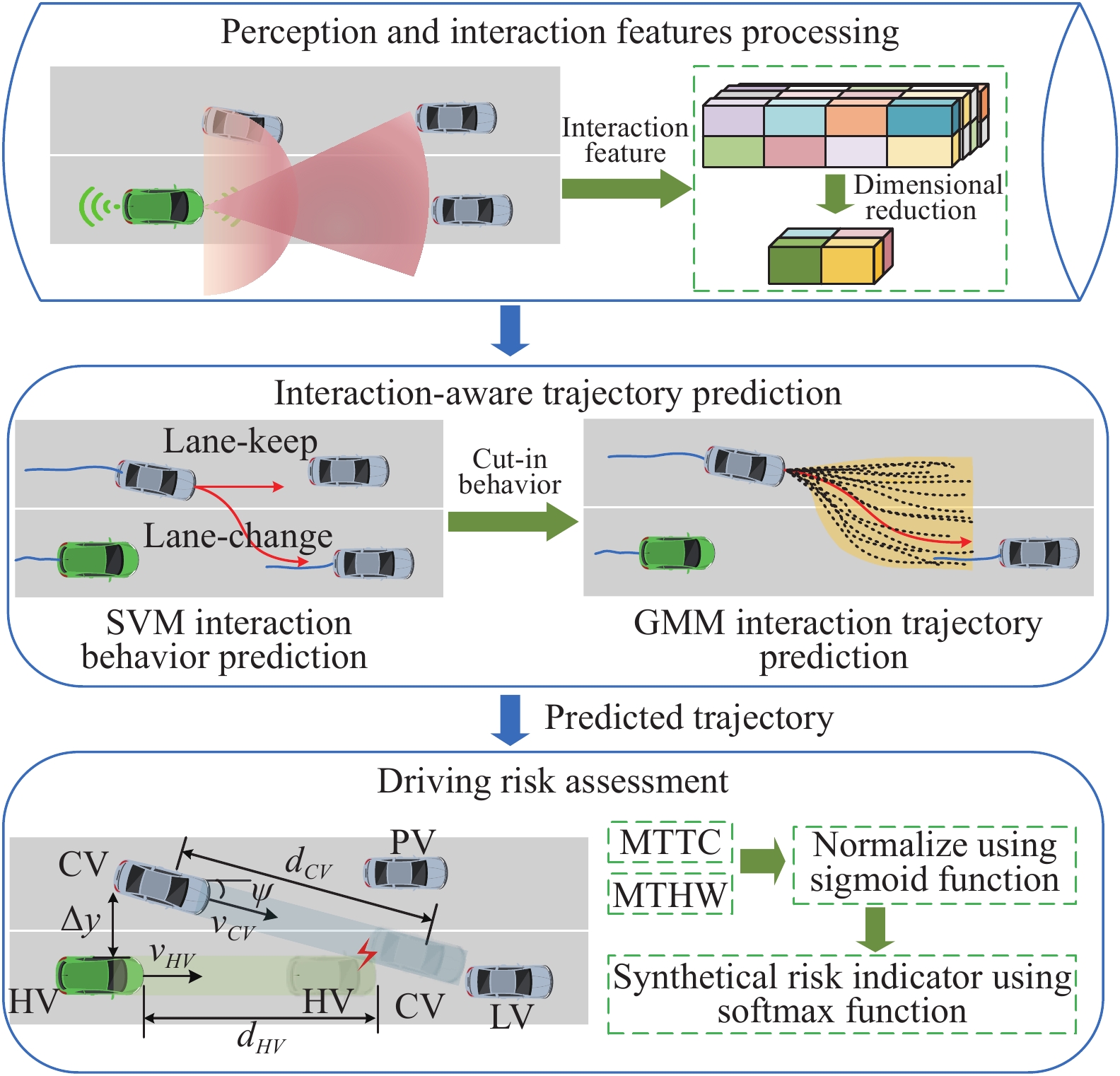

    • An integrated trajectory prediction and risk assessment framework is proposed for the autonomous vehicle in cut-in scenarios
    • A hierarchical interaction-aware prediction method SVM-GMM is proposed and developed to model the interaction behavior of the cut-in scenarios to compromise the computation efficiency and performance of the online application
    • A new risk assessment method is proposed to assess the threat of a cut-in maneuver by combining different risk measurements to compensate the deficiency of the existing risk measures and improve the adaptability for various driving environments
