M. S. Song, F. Zhang, B. X. Huang, and P. F. Huang, “Anti-disturbance control for tethered aircraft system with deferred output constraints,” IEEE/CAA J. Autom. Sinica, vol. 10, no. 2, pp. 474–485, Feb. 2023. doi: 10.1109/JAS.2023.123222
Citation: M. S. Song, F. Zhang, B. X. Huang, and P. F. Huang, “Anti-disturbance control for tethered aircraft system with deferred output constraints,” IEEE/CAA J. Autom. Sinica, vol. 10, no. 2, pp. 474–485, Feb. 2023. doi: 10.1109/JAS.2023.123222

Anti-Disturbance Control for Tethered Aircraft System With Deferred Output Constraints

doi: 10.1109/JAS.2023.123222
Funds:  This work was supported by the National Natural Science Foundation of China (61725303, 91848205)
More Information

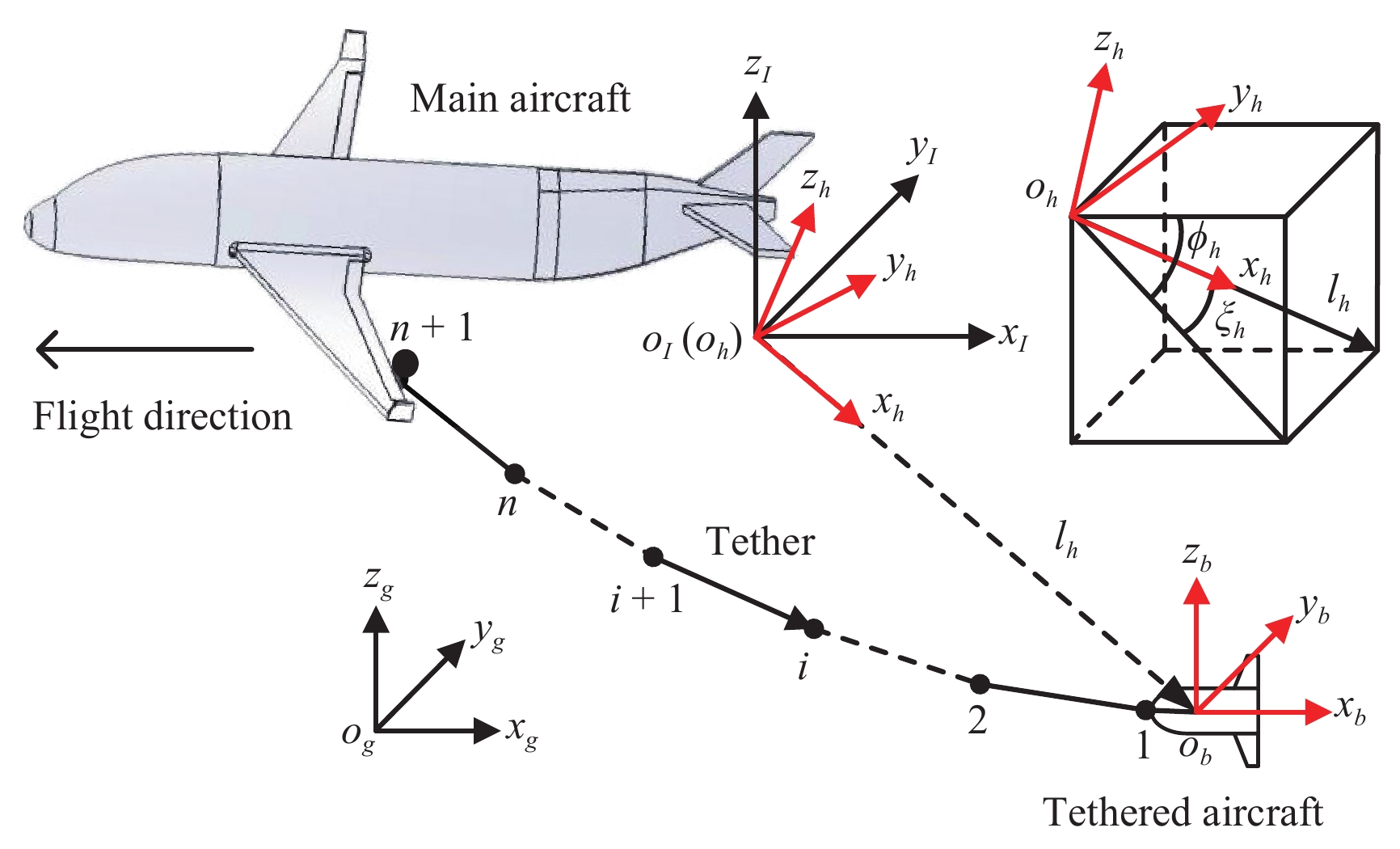

  • In this paper, we investigate the peaking issue of extended state observers and the anti-disturbance control problem of tethered aircraft systems subject to the unstable flight of the main aircraft, airflow disturbances and deferred output constraints. Independent of exact initial values, a modified extended state observer is constructed from a shifting function such that not only the peaking issue inherently in the observer is circumvented completely but also the accurate estimation of the lumped disturbance is guaranteed. Meanwhile, to deal with deferred output constraints, an improved output constrained controller is employed by integrating the shifting function into the barrier Lyapunov function. Then, by combining the modified observer and the improved controller, an anti-disturbance control scheme is presented, which ensures that the outputs with any bounded initial conditions satisfy the constraints after a pre-specified finite time, and the tethered aircraft tracks the desired trajectory accurately. Finally, both a theoretical proof and simulation results verify the effectiveness of the proposed control scheme.


  • loading
  • [1]
    Z. Liu, Z. Han, and W. He, “Adaptive fault-tolerant boundary control of an autonomous aerial refueling hose system with prescribed constraints,” IEEE Trans. Autom. Sci. Eng., vol. 19, no. 4, pp. 2678–2688, Oct. 2022. doi: 10.1109/TASE.2021.3070140
    Z. Su, C. Li, and Y. Liu, “Anti-disturbance dynamic surface trajectory stabilization for the towed aerial recovery drogue under unknown airflow disturbances,” Mech. Syst. Signal Process., vol. 150, p. 107342, Mar. 2021. doi: 10.1016/j.ymssp.2020.107342
    J. Wu, H. Luo, and J. Ai, “Docking controller for autonomous aerial refueling with adaptive dynamic surface control,” IEEE Access, vol. 8, pp. 99 846–99 857, May 2020. doi: 10.1109/ACCESS.2020.2997649
    Z. Su, C. Li, and H. Wang, “Barrier Lyapunov function-based robust flight control for the ultra-low altitude airdrop under airflow disturbances,” Aerosp. Sci. Technol., vol. 84, pp. 375–386, Jan. 2019. doi: 10.1016/j.ast.2018.10.008
    Y. Song and S. Zhou, “Tracking control of uncertain nonlinear systems with deferred asymmetric time-varying full state constraints,” Automatica, vol. 98, pp. 314–322, Dec. 2018. doi: 10.1016/j.automatica.2018.09.032
    T. Gao, Y. Liu, D. Li, S. Tong, and T. Li, “Adaptive neural control using tangent time-varying BLFs for a class of uncertain stochastic nonlinear systems with full state constraints,” IEEE Trans. Cybern., vol. 51, no. 4, pp. 1943–1953, Apr. 2021. doi: 10.1109/TCYB.2019.2906118
    H. Min, N. Duan, S. Xu, and S. Fei, “Barrier Lyapunov function-based tracking control for stochastic nonlinear systems with full-state constraints and input saturation,” J. Franklin Inst., vol. 357, no. 17, pp. 12414–12432, Nov. 2020. doi: 10.1016/j.jfranklin.2020.09.022
    Z. Hao, X. Yue, H. Wen, and C. Liu, “Full-state-constrained non-certainty-equivalent adaptive control for satellite swarm subject to input fault,” IEEE/CAA J. Autom. Sinica, vol. 9, no. 3, pp. 482–495, Mar. 2022. doi: 10.1109/JAS.2021.1004216
    K. P. Tee, S. S. Ge, and E. H. Tay, “Barrier Lyapunov functions for the control of output-constrained nonlinear systems,” Automatica, vol. 45, no. 4, pp. 918–927, Apr. 2009. doi: 10.1016/j.automatica.2008.11.017
    Y. Liu, S. Lu, S. Tong, X. Chen, C. P. Chen, and D.-J. Li, “Adaptive control-based barrier Lyapunov functions for a class of stochastic nonlinear systems with full state constraints,” Automatica, vol. 87, pp. 83–93, Jan. 2018. doi: 10.1016/j.automatica.2017.07.028
    Z. Peng, R. Qi, and B. Jiang, “Adaptive fault tolerant control for hypersonic flight vehicle system with state constraints,” J. Franklin Inst., vol. 357, no. 14, pp. 9351–9377, Sep. 2020. doi: 10.1016/j.jfranklin.2020.07.014
    Y. Sun, C. Li, H. Qin, Z. Deng, and Z. Chen, “Robust neural network-based tracking control for unmanned surface vessels under deferred asymmetric constraints,” Int. J. Robust Nonlinear Control, vol. 32, no. 5, pp. 2741–2759, Apr. 2021.
    H. Zhuang, Q. Sun, Z. Chen, and Y. Jiang, “Back-stepping sliding mode control for pressure regulation of oxygen mask based on an extended state observer,” Automatica, vol. 119, p. 109106, Sep. 2020. doi: 10.1016/j.automatica.2020.109106
    T. Sun, L. Cheng, W. Wang, and Y. Pan, “Semiglobal exponential control of Euler-Lagrange systems using a sliding-mode disturbance observer,” Automatica, vol. 112, p. 108677, Feb. 2020. doi: 10.1016/j.automatica.2019.108677
    Y. Wang, H. Yu, and Y. Liu, “Speed-current single-loop control with overcurrent protection for pmsm based on time-varying nonlinear disturbance observer,” IEEE Trans. Ind. Electron., vol. 69, no. 1, pp. 179–189, Jan. 2022. doi: 10.1109/TIE.2021.3051594
    S. Xingling and W. Honglun, “Back-stepping active disturbance rejection control design for integrated missile guidance and control system via reduced-order ESO,” ISA Trans., vol. 57, pp. 10–22, Jul. 2015. doi: 10.1016/j.isatra.2015.02.013
    S. Kong, J. Sun, C. Qiu, Z. Wu, and J. Yu, “Extended state observer-based controller with model predictive governor for 3-D trajectory tracking of underactuated underwater vehicles,” IEEE Trans. Ind. Inform., vol. 17, no. 9, pp. 6114–6124, Sep. 2021. doi: 10.1109/TII.2020.3036665
    X. Shao, L. Wang, J. Li, and J. Liu, “High-order ESO based output feedback dynamic surface control for quadrotors under position constraints and uncertainties,” Aerosp. Sci. Technol., vol. 89, pp. 288–298, Jun. 2019. doi: 10.1016/j.ast.2019.04.003
    Z. Su and H. Wang, “Probe motion compound control for autonomous aerial refueling docking,” Aerosp. Sci. Technol., vol. 72, pp. 1–13, Jan. 2018. doi: 10.1016/j.ast.2017.10.033
    F. Esfandiari and H. K. Khalil, “Output feedback stabilization of fully linearizable systems,” Int. J. Control, vol. 56, no. 5, pp. 1007–1037, 1992. doi: 10.1080/00207179208934355
    H. K. Khalil and L. Praly, “High-gain observers in nonlinear feedback control,” Int. J. Robust Nonlinear Control, vol. 24, no. 6, pp. 993–1015, Feb. 2014. doi: 10.1002/rnc.3051
    Z. Pu, R. Yuan, J. Yi, and X. Tan, “A class of adaptive extended state observers for nonlinear disturbed systems,” IEEE Trans. Ind. Electron., vol. 62, no. 9, pp. 5858–5869, Sep. 2015. doi: 10.1109/TIE.2015.2448060
    Z. Zhao and B. Guo, “A novel extended state observer for output tracking of MIMO systems with mismatched uncertainty,” IEEE Trans. Autom. Control, vol. 63, no. 1, pp. 211–218, Jan. 2018. doi: 10.1109/TAC.2017.2720419
    X. Dai, Z. Wei, Q. Quan, and K. Cai, “Hose-drum-unit modeling and control for probe-and-drogue autonomous aerial refueling,” IEEE Trans. Aerosp. Electron. Syst., vol. 56, no. 4, pp. 2779–2791, Aug. 2020. doi: 10.1109/TAES.2019.2953413
    Y. Sun, H. Duan, and N. Xian, “Fractional-order controllers optimized via heterogeneous comprehensive learning pigeon-inspired optimization for autonomous aerial refueling hose-drogue system,” Aerosp. Sci. Technol., vol. 81, pp. 1–13, Oct. 2018. doi: 10.1016/j.ast.2018.07.034
    Y. Liu and S. Tong, “Barrier Lyapunov functions-based adaptive control for a class of nonlinear pure-feedback systems with full state constraints,” Automatica, vol. 64, pp. 70–75, Feb. 2016. doi: 10.1016/j.automatica.2015.10.034
    Y. Liu, Q. Zhu, X. Zhou, and L. Wang, “Adaptive fuzzy tracking of switched nonstrict-feedback nonlinear systems with state constraints based on event-triggered mechanism,” ISA Trans., vol. 121, pp. 30–39, Feb. 2022. doi: 10.1016/j.isatra.2021.03.014
    K. Ro, T. Kuk, and J. W. Kamman, “Dynamics and control of hose-drogue refueling systems during coupling,” J. Guid. Control Dyn., vol. 34, no. 6, pp. 1694–1708, Dec. 2011. doi: 10.2514/1.53205
    M. Chen, H. Ma, Y. Kang, and Q. Wu, “Adaptive neural safe tracking control design for a class of uncertain nonlinear systems with output constraints and disturbances,” IEEE Trans. Cybern., vol. 52, no. 11, pp. 12571–12582, Nov. 2022. doi: 10.1109/TCYB.2021.3074566
    Y. Lu, P. Huang, and Z. Meng, “Adaptive neural network dynamic surface control of the post-capture tethered spacecraft,” IEEE Trans. Aerosp. Electron. Syst., vol. 56, no. 2, pp. 1406–1419, Apr. 2020. doi: 10.1109/TAES.2019.2930015
    S. Zhang, Q. Wang, G. Yang, and M. Zhang, “Anti-disturbance backstepping control for air-breathing hypersonic vehicles based on extended state observer,” ISA Trans., vol. 92, pp. 84–93, Sep. 2019. doi: 10.1016/j.isatra.2019.02.017
    Z. Liu, J. Liu, and W. He, “Modeling and vibration control of a flexible aerial refueling hose with variable lengths and input constraint,” Automatica, vol. 77, pp. 302–310, Mar. 2017. doi: 10.1016/j.automatica.2016.11.002
    A. Dogan, S. Venkataramanan, and W. Blake, “Modeling of aerodynamic coupling between aircraft in close proximity,” J. Aircr., vol. 42, no. 4, pp. 941–955, 2005. doi: 10.2514/1.7579


    通讯作者: 陈斌, bchen63@163.com
    • 1.

      沈阳化工大学材料科学与工程学院 沈阳 110142

    1. 本站搜索
    2. 百度学术搜索
    3. 万方数据库搜索
    4. CNKI搜索

    Figures(10)  / Tables(1)

    Article Metrics

    Article views (374) PDF downloads(59) Cited by()


    • Unlike the previous works, the paper considers the fact that the main aircraft flies unsteadily
    • Unlike the current ESO, the modified shifting function-based ESO avoids the peaking phenomenon

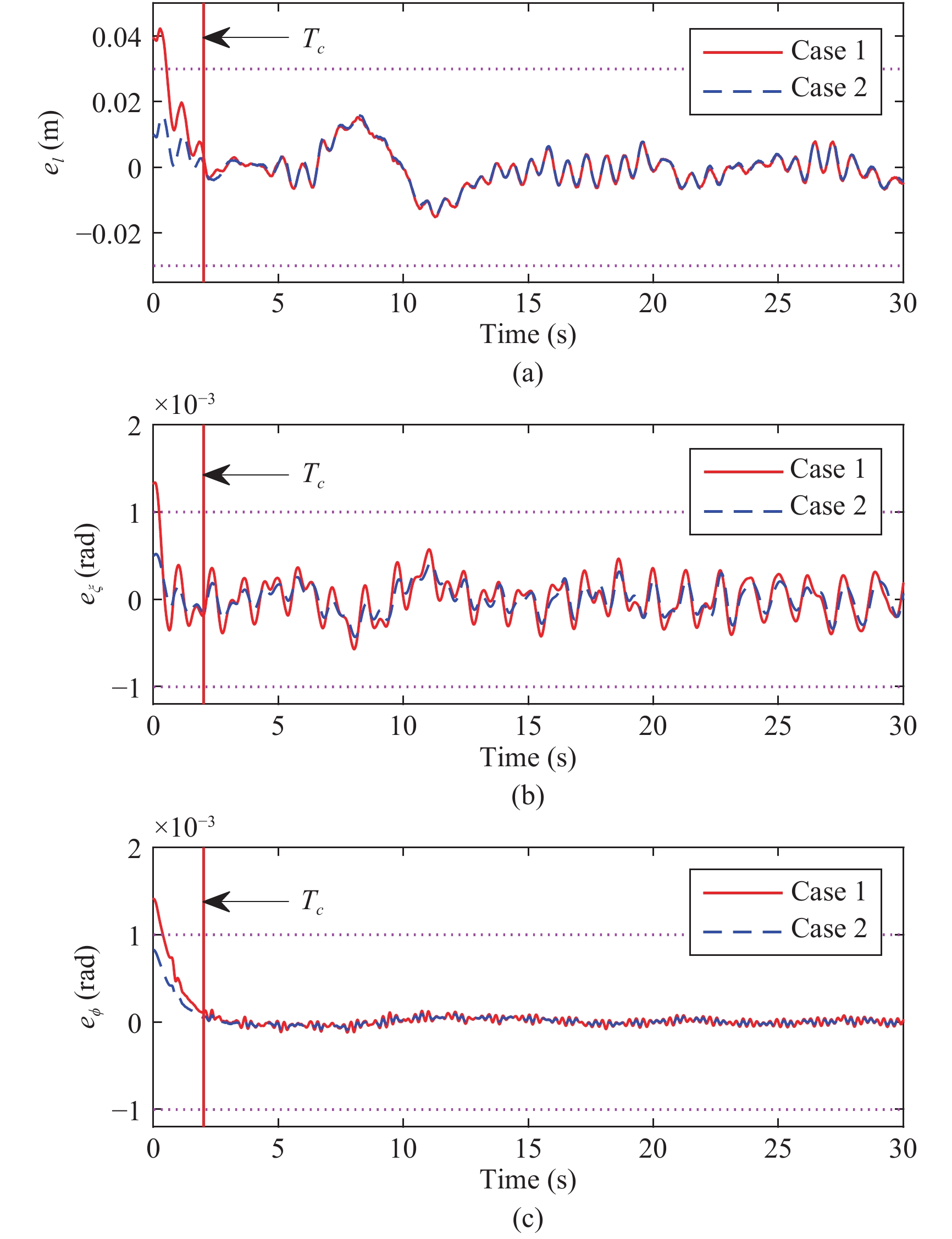

    • The improved output constrained controller solves the deferred output constraint problem

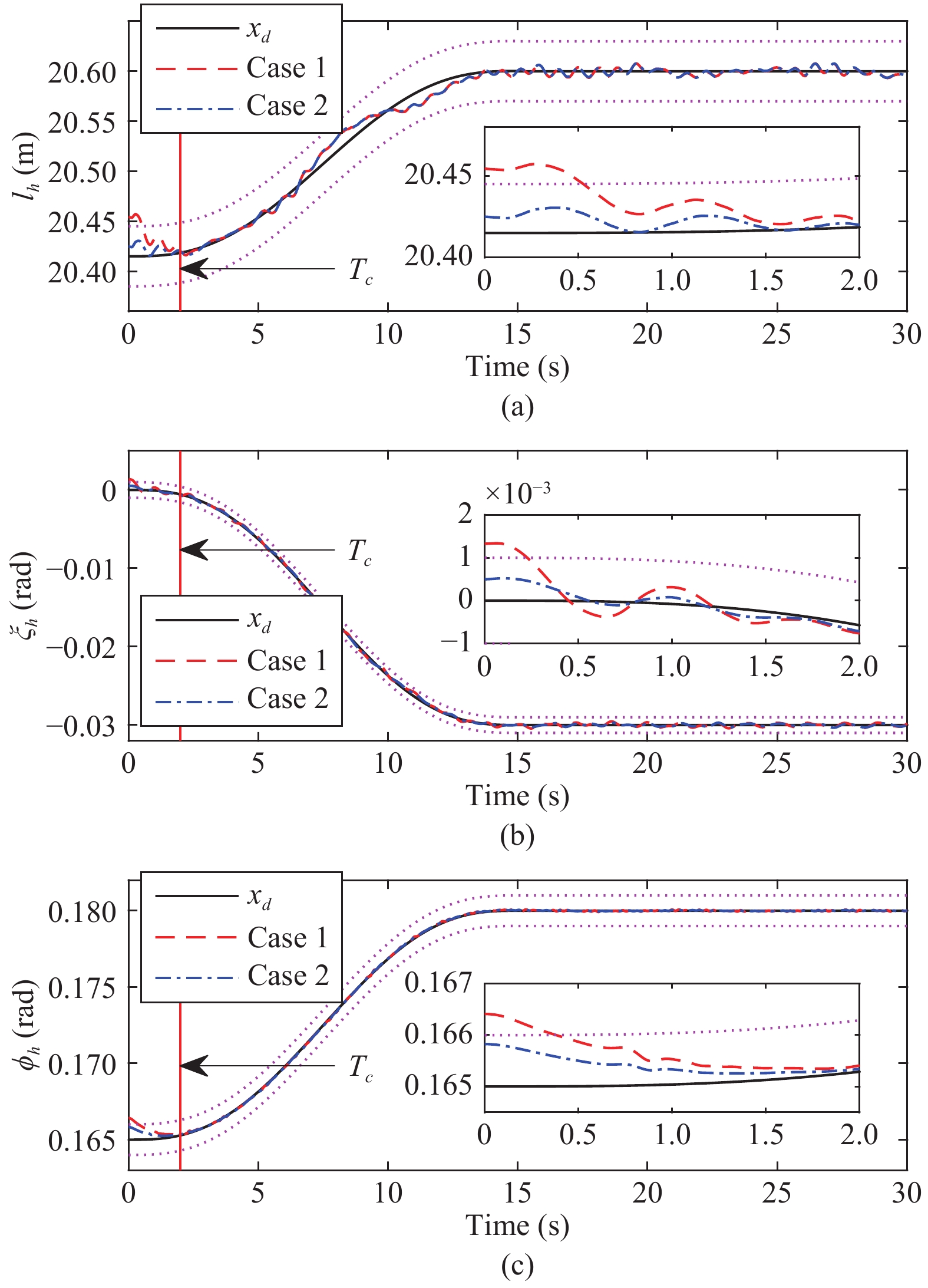

    • The tethered aircraft with any bounded initial condition tracks the desired trajectory exactly
